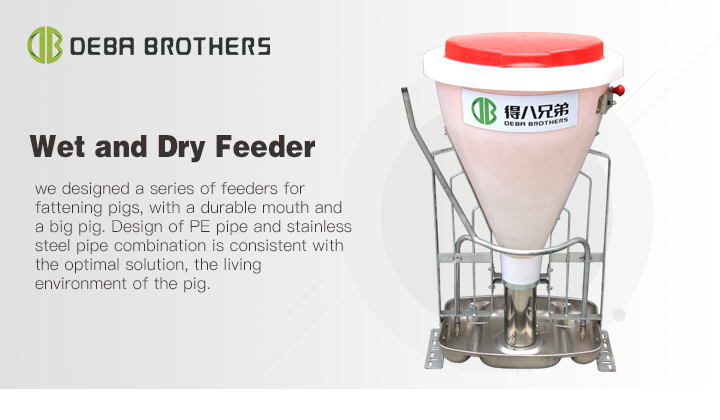

The level of the health level, the humanization design of the trough, dry wet material separation trough provides a variety of feeding form. In particular, we designed a series of feeders for fattening pigs, with a durable mouth and a big pig. Design of PE pipe and stainless steel pipe combination is consistent with the optimal solution, the living environment of the pig.
1. Each feeder can feed up to 50 heads pigs.

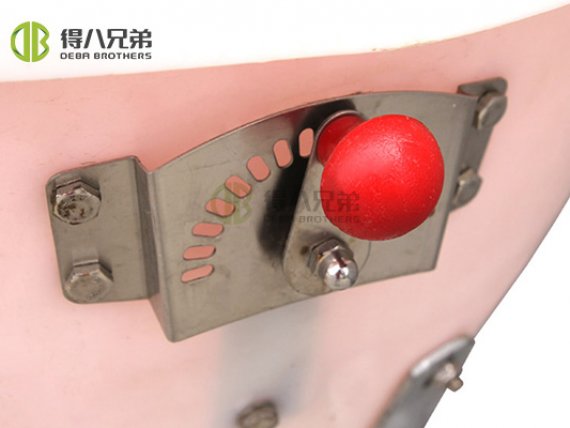

2. With 19 feed discharging control gear,can be accurately adjusted according to the pig feeding speed.

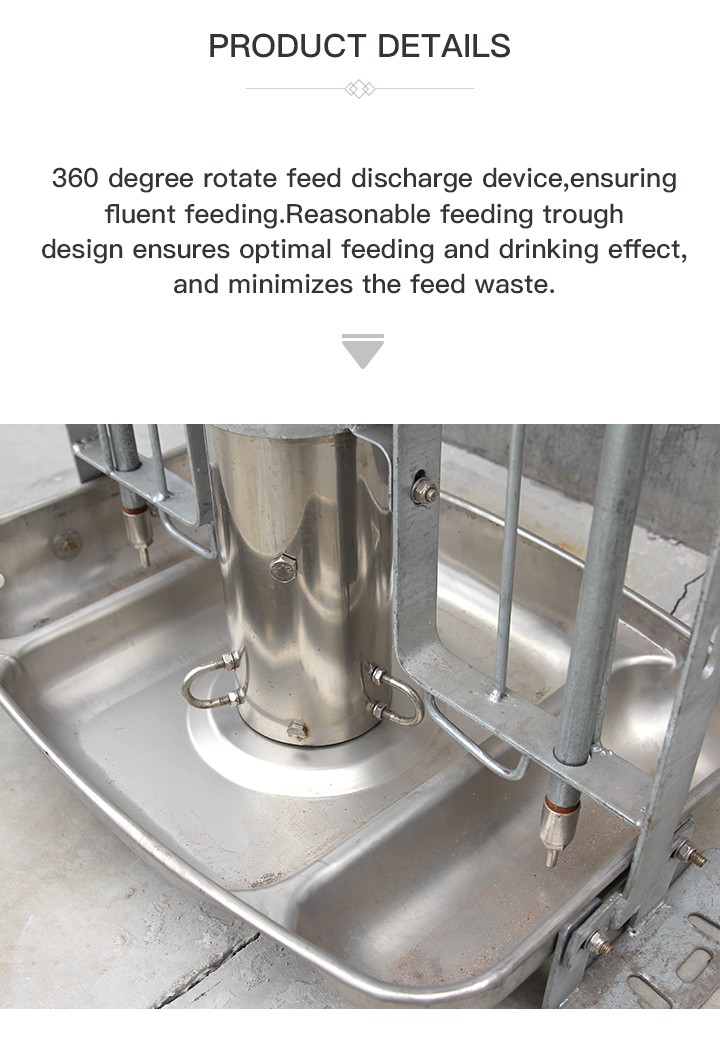

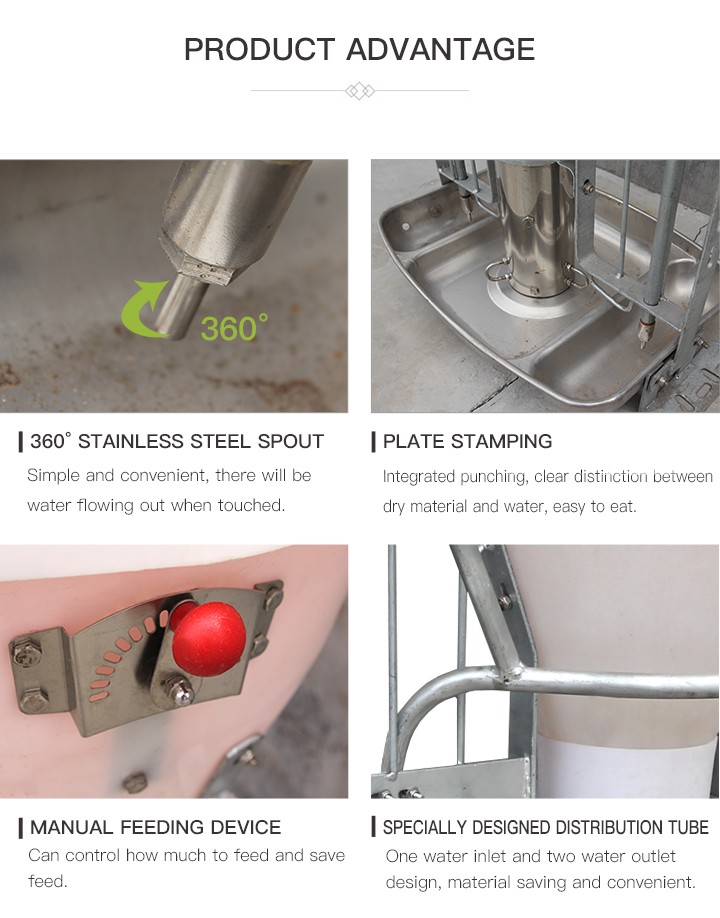

3. 360 degree rotate feed discharge device,ensuring fluent feeding.

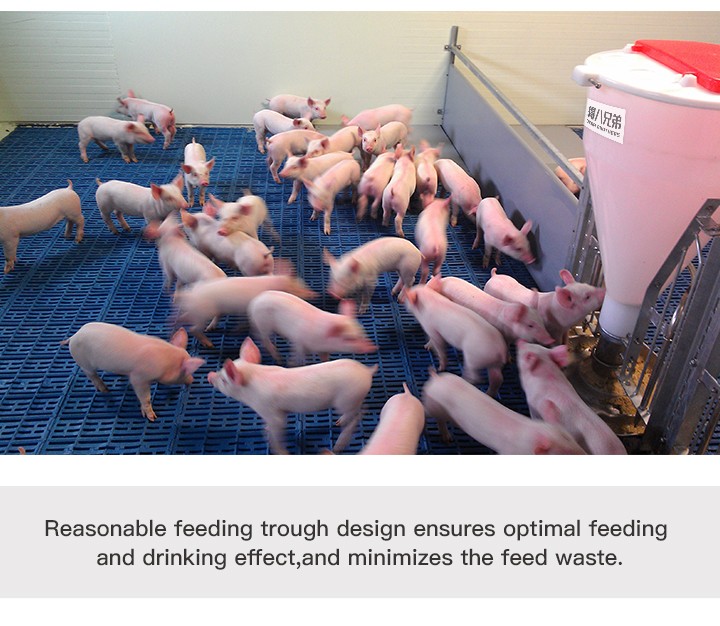

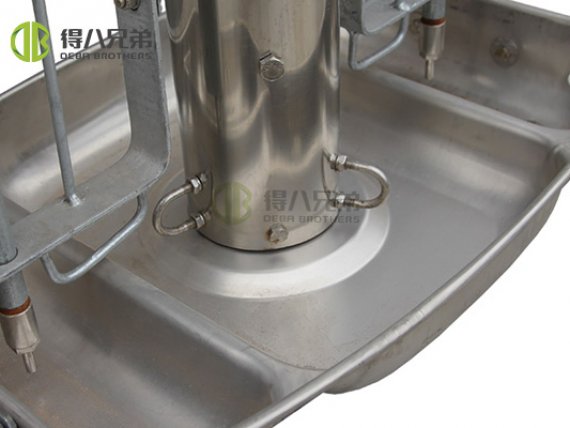

4. Reasonable feeding trough design ensures optimal feeding and drinking effect,and minimizes the feed waste.

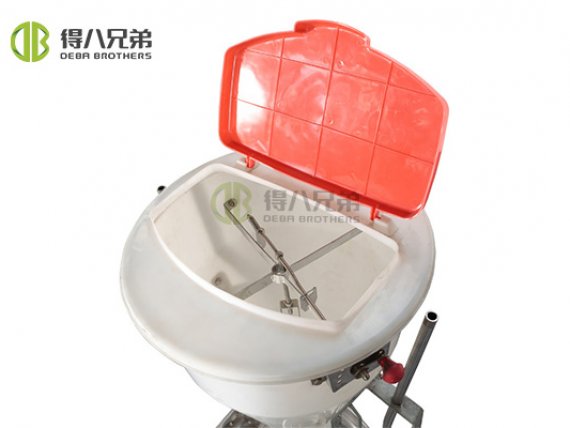

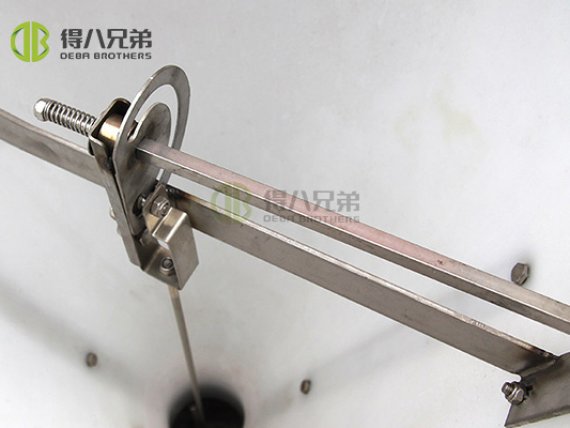

5. The mixer in the barrel can effectively make the feed dropping smoothly.
6. Stable outter frame structure,easy cleaning.

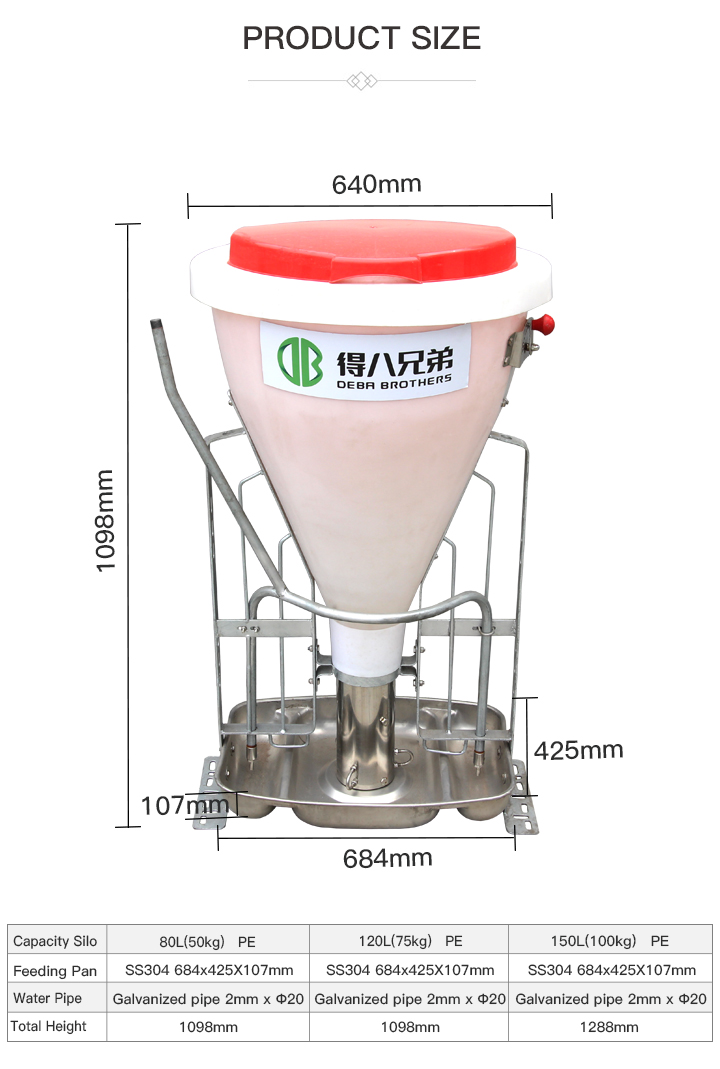

| Model | WeaningB-01 | WeaningB-02 | FinishingY-01 |
| CapacitySilo | 80L(50kg) PE | 120L(75kg) PE | 150L(100kg) PE |
| Feeding Pan | SS304 684x425X107mm | SS304 684x425X107mm | SS304 684x425X107mm |
| Water Pipe | Galvanized pipe 2mm x Φ20 | Galvanized pipe 2mm x Φ20 | Galvanized pipe 2mm x Φ20 |
| Total Height | 1098mm | 1098mm | 1288mm |
