● IE4 energy efficiency, 70% electricity saving per year.
● High pressure 150pa, air volume up to 28,000.
● Customized fan can meet high pressure up to 400 Pa.
● The overall use of EC motor, energy saving, low noise, high efficiency.
● Electric control module is directly connected to collect fan information for precise control.

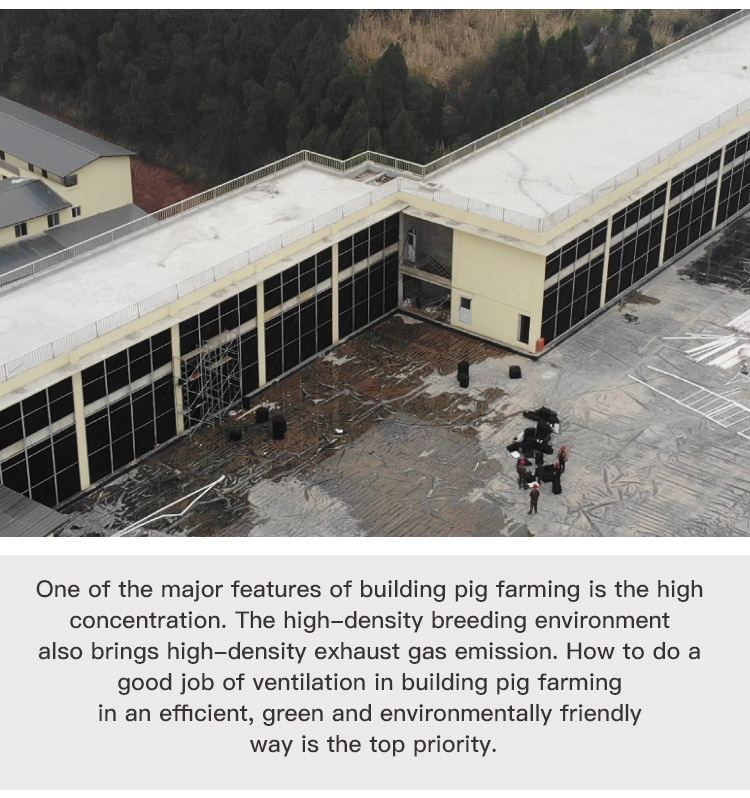

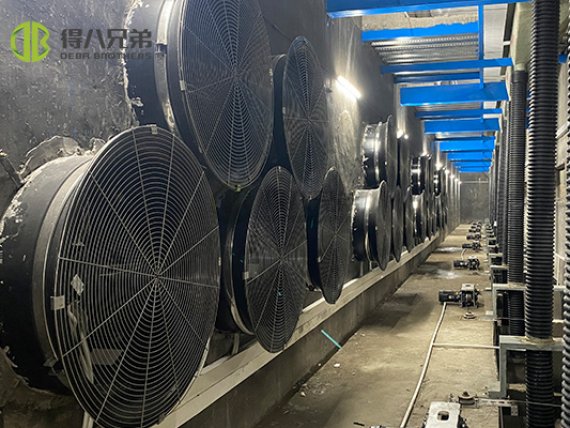

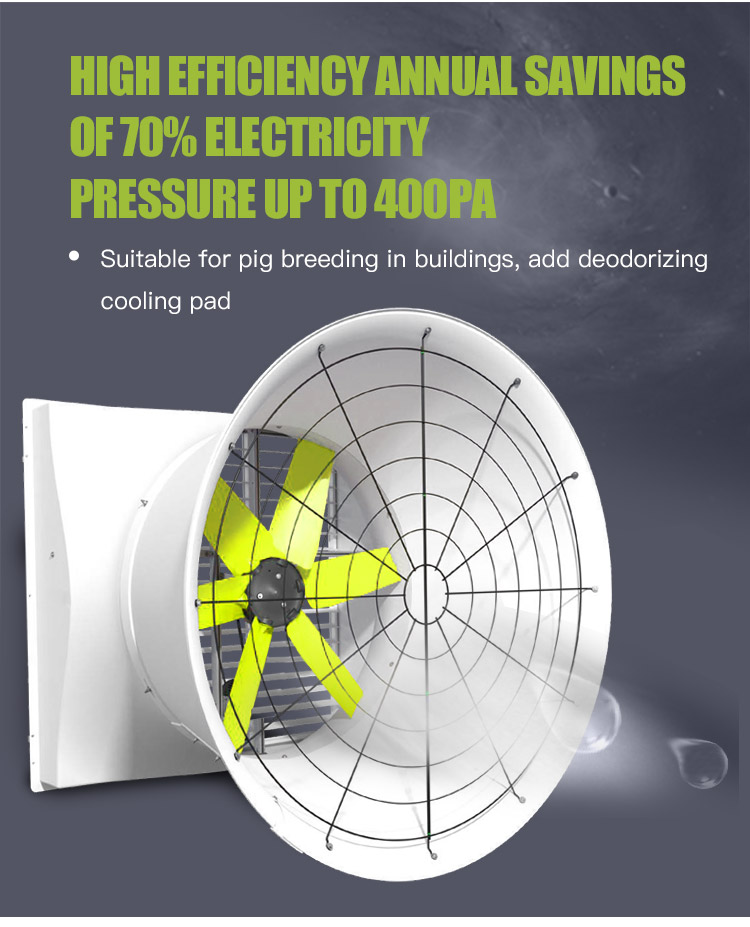

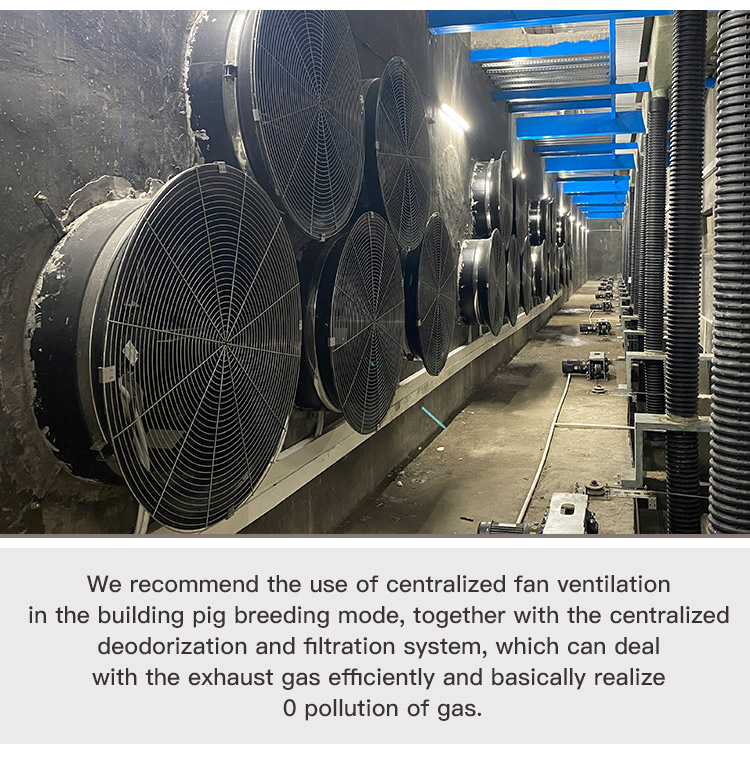

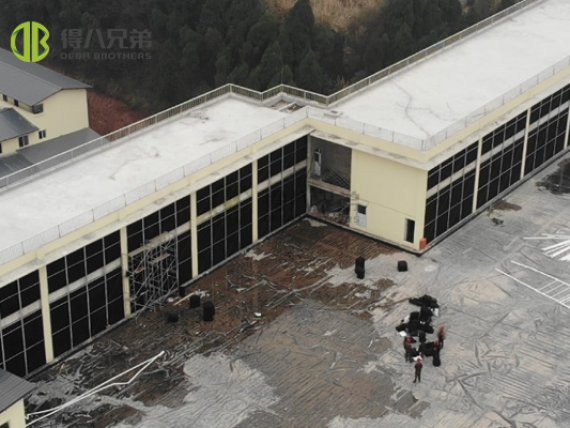

● Suitable for pig breeding in buildings, add deodorizing cooling pad.

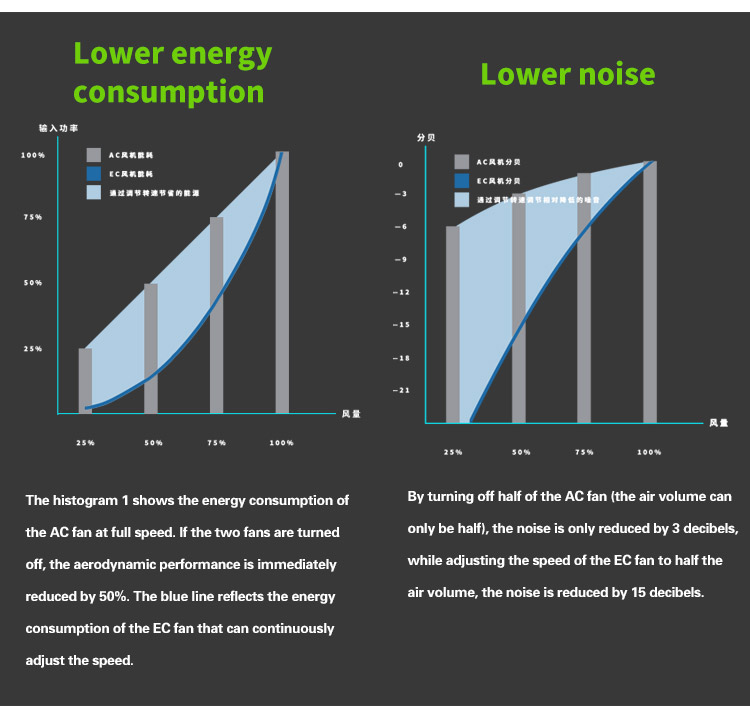

● By turning off half of the AC fans (and only half of the air volume), the noise is reduced by only 3 dB, while adjusting the speed of the EC fan to half of the air volume reduces the noise by 15 dB.

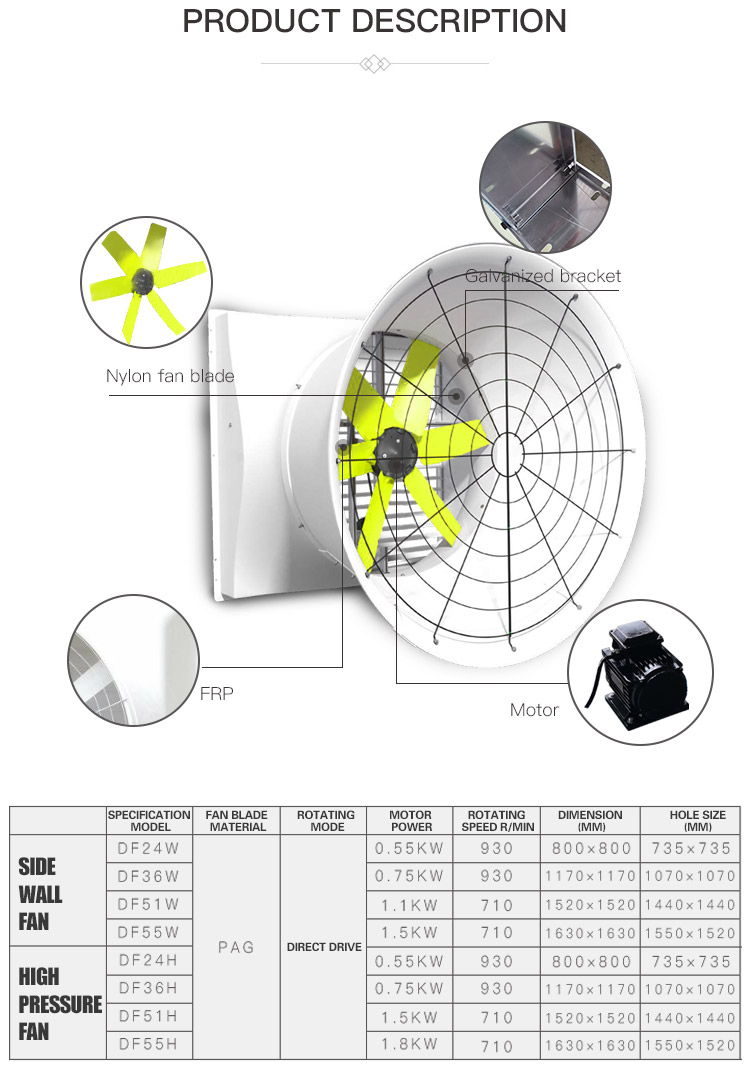

| Specification Model | Fan blade material | Rotating mode | Motor power | Rotating speed R/min | Dimension (mm) | Hole size (mm) | |
| Side wall fan | DF24W | PAG | Direct drive | 0.55KW | 930 | 800*800 | 735*735 |
| DF36W | 0.75KW | 930 | 1170*1170 | 1070*1070 | |||
| DF51W | 1.1KW | 710 | 1520*1520 | 1440*1440 | |||
| DF55W | 1.5KW | 710 | 1630*1630 | 1550*1550 | |||
| High negative pressure fan | DF24W | 0.55KW | 930 | 800*800 | 735*735 | ||
| DF36W | 0.75KW | 930 | 1170*1170 | 1070*1070 | |||
| DF51W | 1.5KW | 710 | 1520*1520 | 1440*1440 | |||
| DF55W | 1.8KW | 710 | 1630*1630 | 1550*1550 |

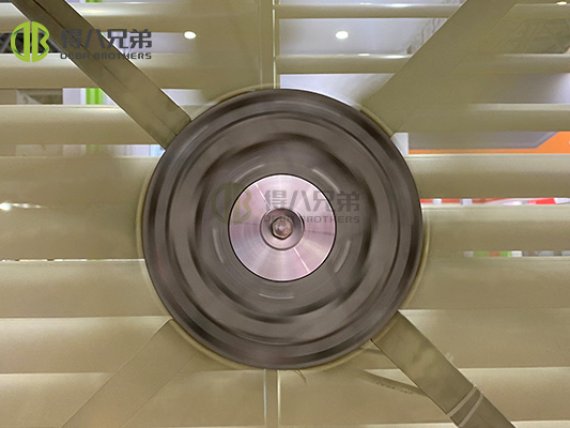

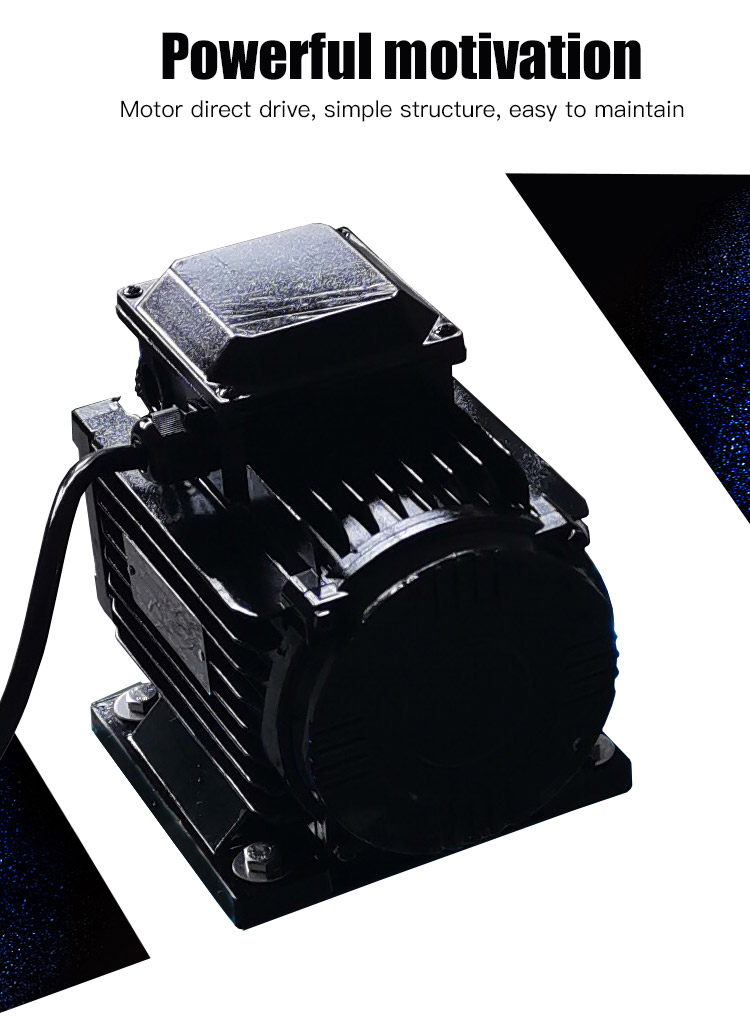

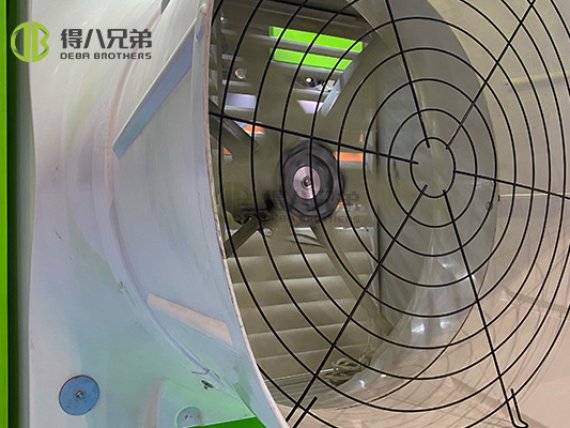

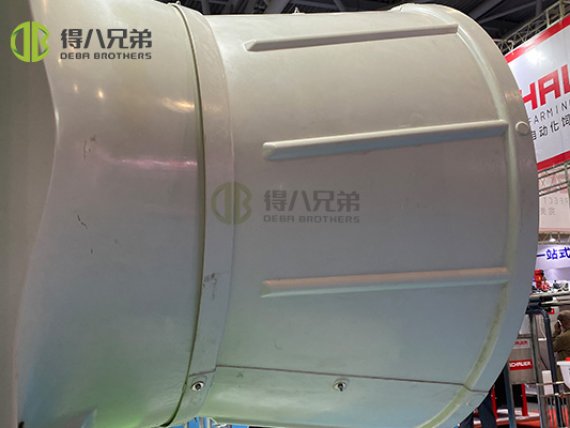

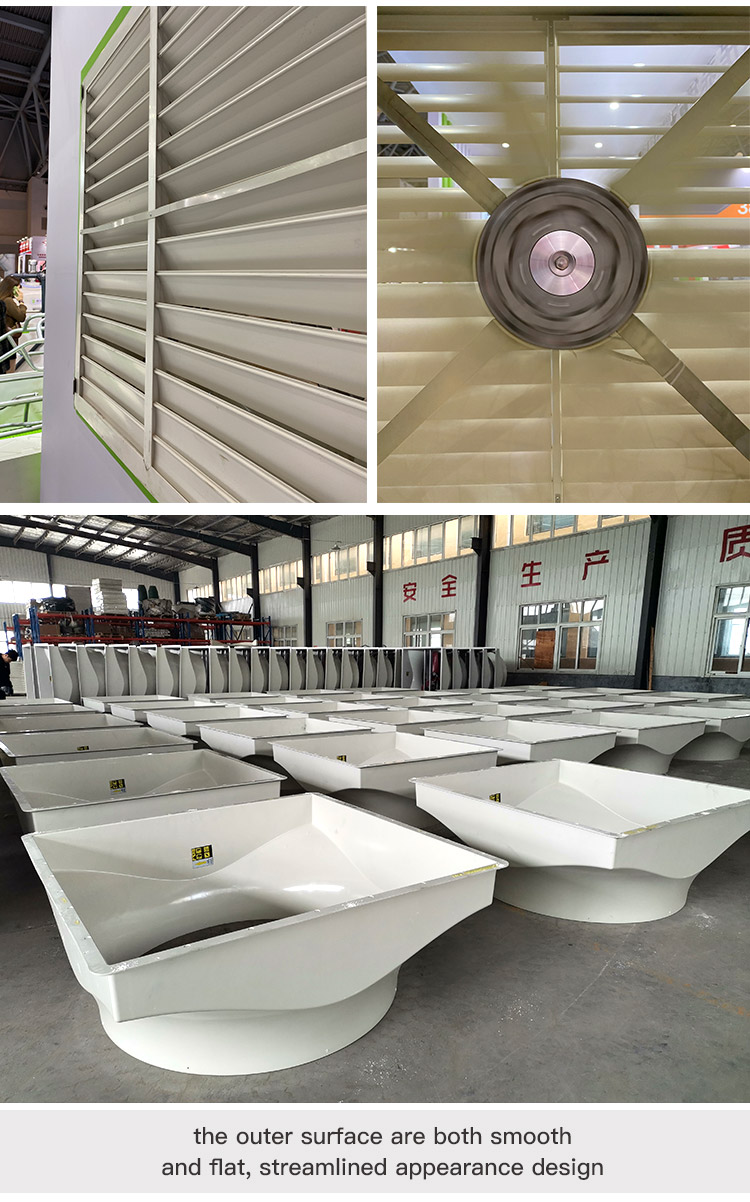

Shell Blade Bracket Cone Shutter Motor
